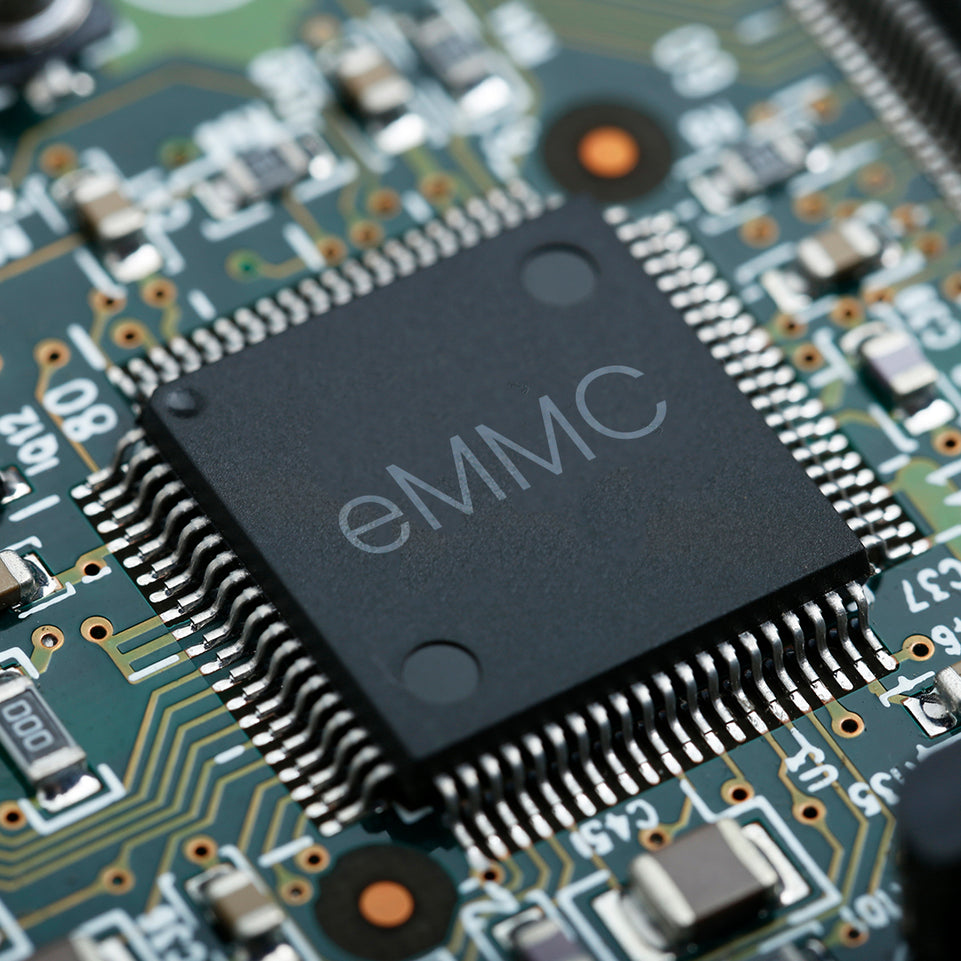

Centon, 153-ball BGA (Automotive Grade 2), 3D TLC (112-Layer), 64GB

Product Details
eMMC 5.1 puts NAND flash and its controller in one soldered BGA package, with ECC, wear leveling and bad-block management built in, so your design boots and runs from a single chip that cannot shake loose. Choose the temperature grade and NAND type (pSLC, MLC or 3D TLC) that fit your endurance and cost targets. Centon builds it to a controlled bill of materials with full lot traceability and keeps it in supply for long-running embedded programs.

Item No. E5-153AT2-64G
Interface eMMC 5.1 HS400
Form Factor 153-ball BGA
Operating Temperature Automotive Grade 2: -40 to +105C
Size 64GB
Sequential Write (MB/s) 130
Sequential Read (MB/s) 320
Voltage 3.3V
I/O Voltage (VCCQ) 3.3V/1.8V
W/E Endurance ≥ 3K
Package Size 11.5 × 13.0 × 1.0 mm
Data Retention 1-Year @ life-end | 10-Years @ initial
Lifecycle StatusProduction
RoHSCompliant
REACHCompliant
MOQLow MOQ
Lead TimeQuoted per order
Optima: BOM control

Critical parts fixed. NAND may move to qualified equivalents under the same part number.

Optima+: 100% BOM control

Every part locked. Any change gets a new part number.

Same specifications. Our sales team will help you choose.

Similar parts

View all →
Part numberCapacityNANDPackageTemperature
E5-100AP-4G4GBpSLC100-ball BGAAutomotive -40°C to 105°C
E5-100AM-8G8GBMLC100-ball BGAAutomotive -40°C to 105°C
E5-100AM-16G16GBMLC100-ball BGAAutomotive -40°C to 105°C
E5-153AP-4G4GBpSLC153-ball BGAAutomotive -40°C to 105°C
E5-153AM-8G8GBMLC153-ball BGAAutomotive -40°C to 105°C
E5-153AM-16G16GBMLC153-ball BGAAutomotive -40°C to 105°C
E5-153AT1-32G32GB3D TLC (64-Layer)153-ball BGAAutomotive -40°C to 105°C
E5-153AT1-64G64GB3D TLC (64-Layer)153-ball BGAAutomotive -40°C to 105°C
E5-153AT1-128G128GB3D TLC (64-Layer)153-ball BGAAutomotive -40°C to 105°C
E5-153AT2-64GThis part64GB3D TLC (112-Layer)153-ball BGAAutomotive -40°C to 105°C
E5-153AT2-128G128GB3D TLC (112-Layer)153-ball BGAAutomotive -40°C to 105°C
E5-153AT2-256G256GB3D TLC (112-Layer)153-ball BGAAutomotive -40°C to 105°C
